Product Name : SWITHC LOCK WITH 2 KEYS, WITHOUT SPRING RETURN
Product No : HS-05CL
Inquiry
Product Introduction

A.FEATURES

1.2 POSITIONS (ON-OFF)

2.7 PIN TUMBLERS PICKPROOF MECHANISM

3.CHROME PLATED BRASS HOUSING

4.KEY REMOVAL POSITION 0° AND 90°



B.SWITCH SPECIFICATIONS

1.CIRCUIT : SPDT 2P ON-OFF

2.RATING : 3A 125VAC

3.CONTACT RESISTANCE : 0.2 OHM MAX:0.1A

4.INSURATION RESISTANCE : 100 OHM MIN.AT 500VAC



5.INSURATION WITHSTAND : 1000VAC 1 MINUTE

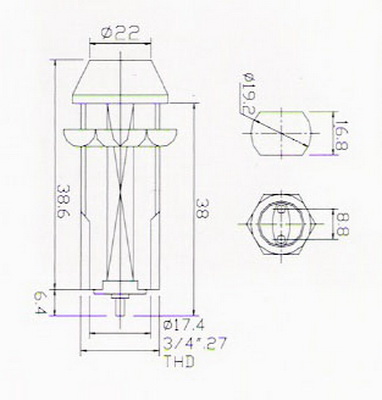

proimages/05-LOCK-WITH-2-KEYS/HS-05CL/HS-05CL-3.jpg
