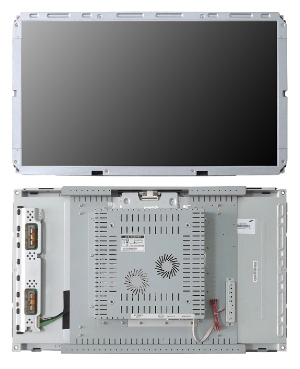

Product Name : MT32W-26763
Product No : MT32W-26763
Inquiry
Product Introduction

Product Content:

·         32" WIDE VIEWING ANGLE / WIDE SCREEN

·         16:9 Wide Screen.

·         High Brightness.

·         External OSD key board.

·         Fast response time.

·         Low electromagnetic wave and power saver.

·         Option with Touch Screen.





NORMAL VIEWING ANGLE

Model

MT32W SERIES

Model Selection Guide

MT32W-@ (@=0 for PC only, @=1 for CGA+PC, @=2 for DVI+PC)

LCD Panel

Screen Size

32

Pixel Pitch(mm)

0.51075 X 0.51075

Backlight

CCFL X 16

Cell Type

SMVA

Aspect Ratio

16 : 9

Video

Input Mode

WXGA

Input Signal

0.7Vpp Analog 75 ohm

Sync

TTL Level Separate, Composite

Scan Frequency

Horizontal

15~60KHz

Vertical

48~63Hz

Display

Horizontal Size

697.68

Vertical Size

392.26

Colors

16.7M

Resolution

1366 X 768

Bandwidth

90MHz Dot Clock

Contrast Ratio

800:1 typ

Brightness

500cd/m2

Power

Input

AC/DC Adapter

100~240VAC

47~63Hz

Consumption

150Wmax

Management

VESA-DPMS

150Wmax

Power Down

Mode

Operations

Function Key

5 Key

OSD Adjustment

Contrast, Brightness, Phase, Clock, H-position, V-position, V-size, …., Exit

Viewing Angle

Horizontal

176°

Vertical

176°

Windows Compatibility

Windows 98 / 2000

PC Interface

Analog Interface

Signal Cable

Standard VGA cable w/15-pin D-sub

Response Time (ton+toff)

8ms

Operating Temperature

0℃~40℃

Humidity

10~85%

Outer Dimension (L x W x H)

761 X 454.4 X 97
