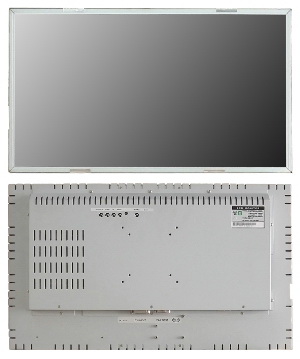

MT23W3R-86063
Product Introduction
|
Product Content:
|
|
Model |
MT23W3R-86063 |
|
|
Touch System |
3M Touch RS232 |
|
|
LCD Panel |
Screen Size |
23.0 |
|
Pixel Pitch(mm) |
0.2652 x 0.2652 |
|
|
Backlight |
LED |
|
|
Cell Type |
IPS |
|
|
Response |
14ms |
|
|
Aspect Ratio |
16 : 9 |
|
|
Video |
Input Mode |
Full HD |
|
Input Signal |
0.7Vpp Analog 75 ohm |
|
|
Sync |
TTL Level Separate, Composite |
|
|
Scan Frequency |
Horizontal |
31~67KHz |
|
Vertical |
56~60Hz |
|
|
Display |
Horizontal Size |
509.184 |
|
Vertical Size |
286.416 |
|
|
Colors |
16.7M |
|
|
Resolution |
1920 x 1080 |
|
|
Bandwidth |
72MHz Typ |
|
|
Contrast Ratio |
1000:1 Typ |
|
|
Brightness |
250cd/m2 Typ |
|
|
Power |
Input |
AC/DC Adapter (Input 100-240VAC, Output 12VDC) |
|
100~240VAC |
||
|
|
||
|
|
||
|
Consumption |
25W Typ +/-20% |
|
|
Management |
VESA-DPMS |
|
|
25W Typ +/-20% |
||
|
Power Down |
||
|
Mode </=5Watts |
||
|
Operations |
Function Key |
5 Key |
|
OSD Adjustment |
Contrast, Brightness, Phase, Clock, H-position, V-position, …., Exit |
|
|
Viewing Angle |
Horizontal |
178° |
|
Vertical |
178° |
|
|
Windows Compatibility |
Windows 98 / 2000 |
|
|
PC Interface |
Analog Interface |
|
|
Signal Cable |
Standard VGA cable w/15-pin D-sub |
|
|
EMI/Safety |
|
|
|
Operating Temperature |
0℃~50℃ |
|
|
Humidity |
10~85% |
|
|
Outer Dimension (L x W x H) |
537 x 314.7 x 54.5 |
|
