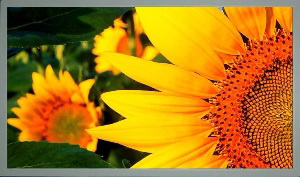

MT21W3R-26063
Product Introduction
|
Product Content:
|
|
Model |
MT21W3R-X6063 |
|
|
Model Selection Guide |
MT21W3R-@6063(@=0=VGA, @=2=VGA+DVI) |
|
|
LCD Panel |
Screen Size |
21.5 |
|
Pixel Pitch(mm) |
0.24825 X 0.24825 |
|
|
Backlight |
LED |
|
|
Cell Type |
IPS |
|
|
Aspect Ratio |
16 : 9 |
|
|
Video |
Input Mode |
SXGA |
|
Input Signal |
0.7Vpp Analog 75 ohm |
|
|
Sync |
TTL Level Separate, Composite |
|
|
Scan Frequency |
Horizontal |
15~80KHz |
|
Vertical |
48~75Hz |
|
|
Display |
Horizontal Size |
376.32 |
|
Vertical Size |
301.056 |
|
|
Colors |
16.2M |
|
|
Resolution |
1280 X 1024 |
|
|
Bandwidth |
130MHz Dot Clock |
|
|
Contrast Ratio |
500:1 typ |
|
|
Brightness |
300cd/m2 |
|
|
Power |
Input |
AC/DC Adapter |
|
100~240VAC |
||
|
47~63Hz |
||
|
12VDC / 4A |
||
|
Consumption |
45Wmax |
|
|
Management |
VESA-DPMS |
|
|
45Wmax |
||
|
Power Down |
||
|
Mode Watts |
||
|
Operations |
Function Key |
5 Key |
|
OSD Adjustment |
Contrast, Brightness, Phase, Clock, H-position, V-position, V-size, …., Exit |
|
|
Viewing Angle |
Horizontal |
170° |
|
Vertical |
160° |
|
|
Windows Compatibility |
Windows 98 / 2000 |
|
|
PC Interface |
Analog Interface |
|
|
Signal Cable |
Standard VGA cable w/15-pin D-sub |
|
|
Response Time |
18ms (G to G) |
|
|
Operating Temperature |
0℃~40℃ |
|
|
Humidity |
10~85% |
|
|
Outer Dimension (L x W x H) |
400 X 328 X 51 |
|
|
Packing Dimension (L x W x H) |
500 X 400 X 438(4PCS) |
|
|
Weight Approx |
W/O Touch |
26.3KG/ 4PCS |
