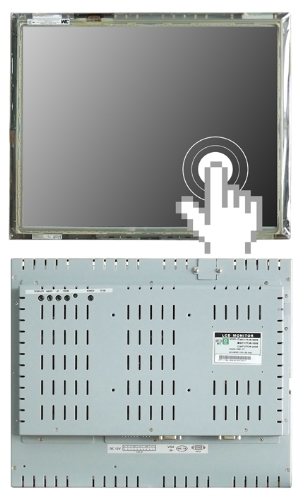

MT17T3R-17053
Product Introduction
|
Product Content:
|
|
NORMAL VIEWING ANGLE |
||
|
Model |
MT17T3R SERIES |
|
|
Model Selection Guide |
MT17T3R-@ (@=0 for PC only, @=1 for CGA+PC, @=2 for DVI+PC) |
|
|
LCD Panel |
Screen Size |
17.0 |
|
Pixel Pitch(mm) |
0.264 x 0.264 |
|
|
Backlight |
CCFL x 4 |
|
|
Cell Type |
TN |
|
|
Aspect Ratio |
5 : 4 |
|
|
Video |
Input Mode |
SXGA |
|
Input Signal |
0.7Vpp Analog 75 ohm |
|
|
Sync |
TTL Level Separate, Composite |
|
|
Scan Frequency |
Horizontal |
15~80KHz |
|
Vertical |
48~75Hz |
|
|
Display |
Horizontal Size |
337.92 |
|
Vertical Size |
270.336 |
|
|
Colors |
16.7M |
|
|
Resolution |
1280 x 1024 |
|
|
Bandwidth |
130MHz Dot Clock |
|
|
Contrast Ratio |
500:1 typ |
|
|
Brightness |
300cd/m2 |
|
|
Power |
Input |
AC/DC Adapter |
|
100~240VAC |
||
|
47~63Hz |
||
|
12VDC / 4A |
||
|
Consumption |
42Wmax |
|
|
Management |
VESA-DPMS |
|
|
42Wmax |
||
|
Power Down |
||
|
Mode </=3Watts |
||
|
Operations |
Function Key |
5 Key |
|
OSD Adjustment |
Contrast, Brightness, Phase, Clock, H-position, V-position, V-size, …., Exit |
|
|
Viewing Angle |
Horizontal |
160° |
|
Vertical |
160° |
|
|
Windows Compatibility |
Windows 98 / 2000 |
|
|
PC Interface |
Analog Interface |
|
|
Signal Cable |
Standard VGA cable w/15-pin D-sub |
|
|
Response Time (ton+toff) |
5ms |
|
|
Outer Dimension (L x W x H) |
368 x 299 x 42 |
|
