Product Content:
NORMAL VIEWING ANGLE
Model

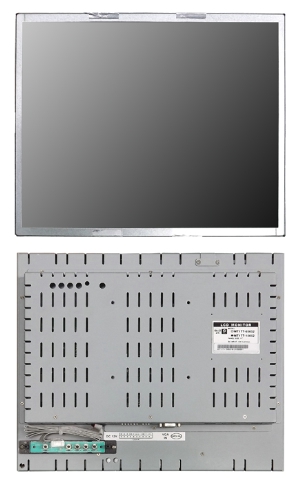

MT17T SERIES
Model Selection Guide
MT17T-@ (@=0 for PC only, @=1 for CGA+PC, @=2 for DVI+PC)
LCD Panel
Screen Size
17.0
Pixel Pitch(mm)
0.264 x 0.264
Backlight
CCFL x 4
Cell Type
TN
Aspect Ratio
5 : 4
Video
Input Mode
SXGA
Input Signal
0.7Vpp Analog 75 ohm
Sync
TTL Level Separate, Composite
Scan Frequency
Horizontal
15~80KHz
Vertical
48~75Hz
Display
Horizontal Size
337.92
Vertical Size
270.336
Colors
16.7M
Resolution
1280 x 1024
Bandwidth
130MHz Dot Clock
Contrast Ratio
500:1 typ
Brightness
300cd/m2
Power
Input
AC/DC Adapter
100~240VAC
47~63Hz
12VDC / 4A
Consumption
42Wmax
Management
VESA-DPMS
Power Down
Mode
Operations
Function Key
5 Key
OSD Adjustment
Contrast, Brightness, Phase, Clock, H-position, V-position, V-size, …., Exit
Viewing Angle
160°
Windows Compatibility
Windows 98 / 2000
PC Interface
Analog Interface
Signal Cable
Standard VGA cable w/15-pin D-sub
Response Time (ton+toff)
5ms
Outer Dimension (L x W x H)
368 x 299 x 42
