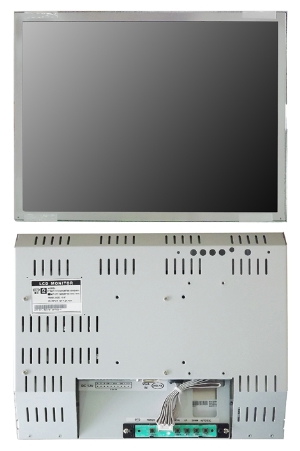

MT15T-1505
Product Introduction
|
Product Content:
|
|
NORMAL VIEWING ANGLE |
||
|
Model |
MT15T SERIES |
|
|
Model Selection Guide |
MT15T-@ (@=0 for PC only, @=1 for CGA+PC, @=2 for DVI+PC) |
|
|
LCD Panel |
Screen Size |
15.0 |
|
Pixel Pitch(mm) |
0.297 x 0.297 |
|
|
Backlight |
CCFL x 2 |
|
|
Cell Type |
TN |
|
|
Aspect Ratio |
4 : 3 |
|
|
Video |
Input Mode |
XGA |
|
Input Signal |
0.7Vpp Analog 75 ohm |
|
|
Sync |
TTL Level Separate, Composite |
|
|
Scan Frequency |
Horizontal |
15~60KHz |
|
Vertical |
48~75Hz |
|
|
Display |
Horizontal Size |
304.128 |
|
Vertical Size |
228.096 |
|
|
Colors |
16.2M |
|
|
Resolution |
1024 x 768 |
|
|
Bandwidth |
80MHz |
|
|
Contrast Ratio |
500:1 typ |
|
|
Brightness |
250cd/m2 |
|
|
Power |
Input |
AC/DC Adapter |
|
100~240VAC |
||
|
47~63Hz |
||
|
12VDC |
||
|
Consumption |
40Wmax |
|
|
Management |
VESA-DPMS |
|
|
40Wmax |
||
|
Power Down |
||
|
Mode |
||
|
Operations |
Function Key |
5 Key |
|
OSD Adjustment |
Contrast, Brightness, Phase, Clock, H-position, V-position, V-size, …., Exit |
|
|
Viewing Angle |
Horizontal |
150° |
|
Vertical |
150° |
|
|
Windows Compatibility |
Windows 98 / 2000 |
|
|
PC Interface |
Analog Interface |
|
|
Signal Cable |
Standard VGA cable w/15-pin D-sub |
|
|
Response Time (ton+toff) |
12ms |
|
|
Operating Temperature |
0℃~40℃ |
|
|
Humidity |
10~85% |
|
|
Outer Dimension (L*w*H) |
330.0 x 257.5 x 48 |
|
