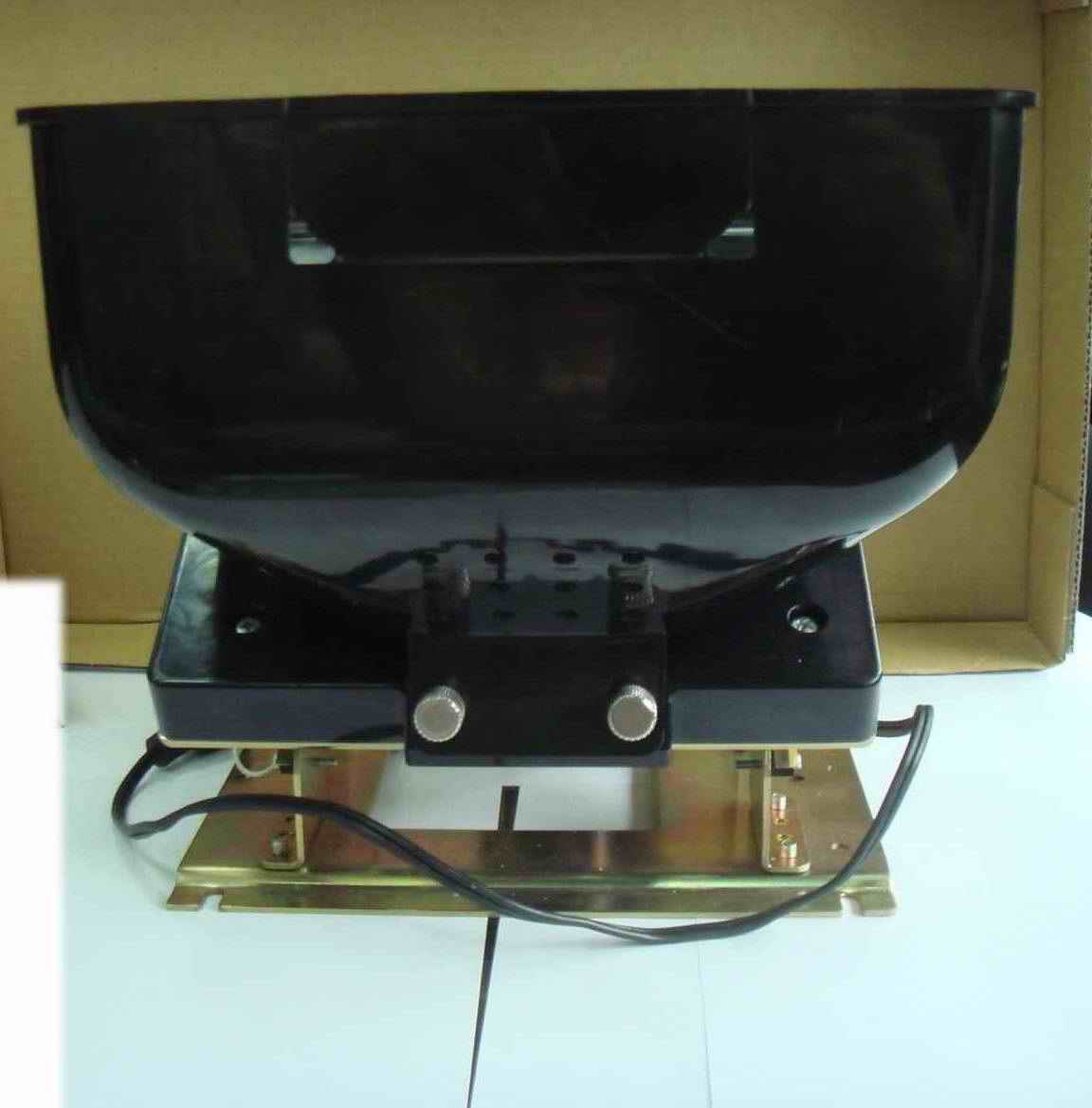

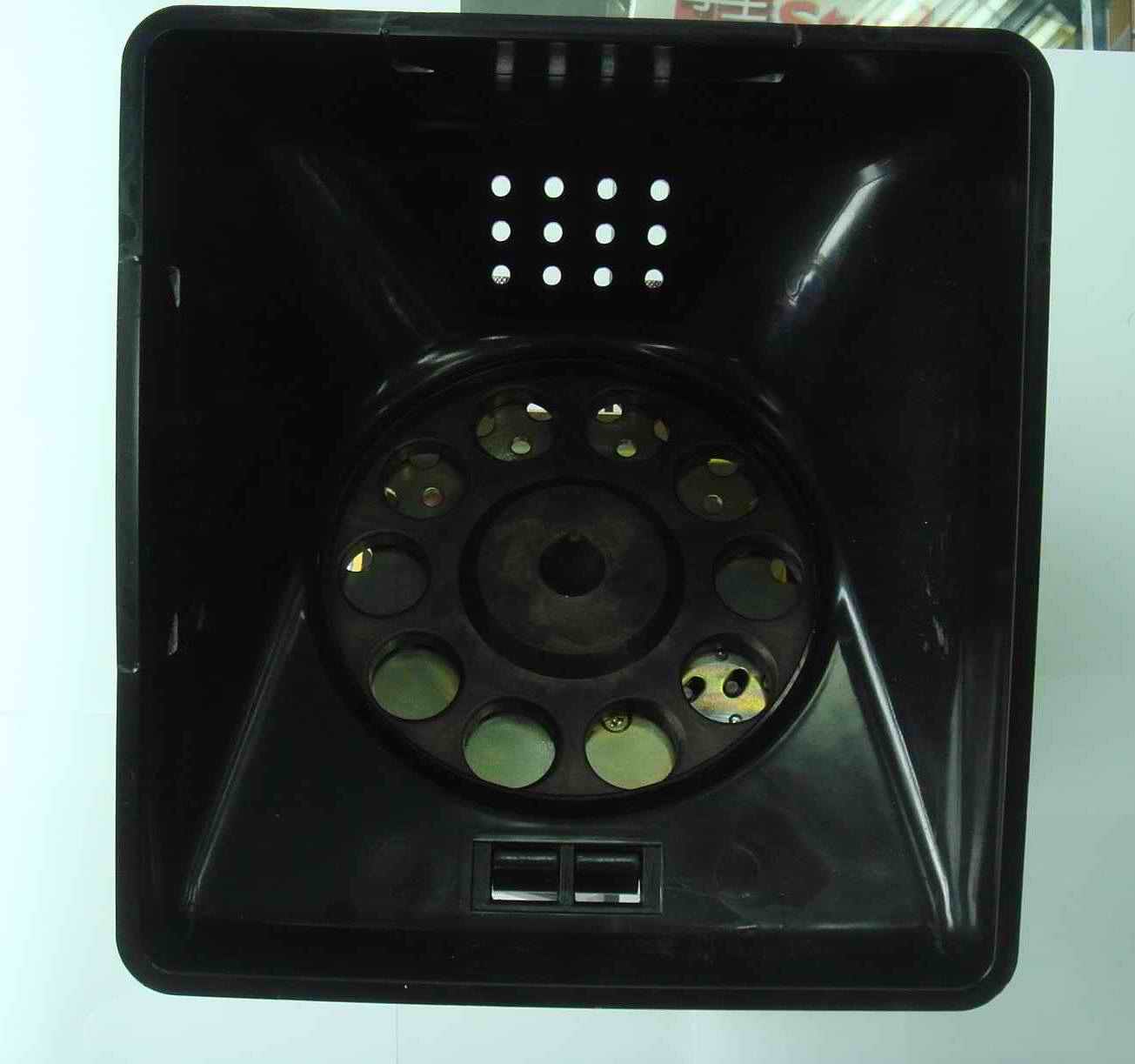

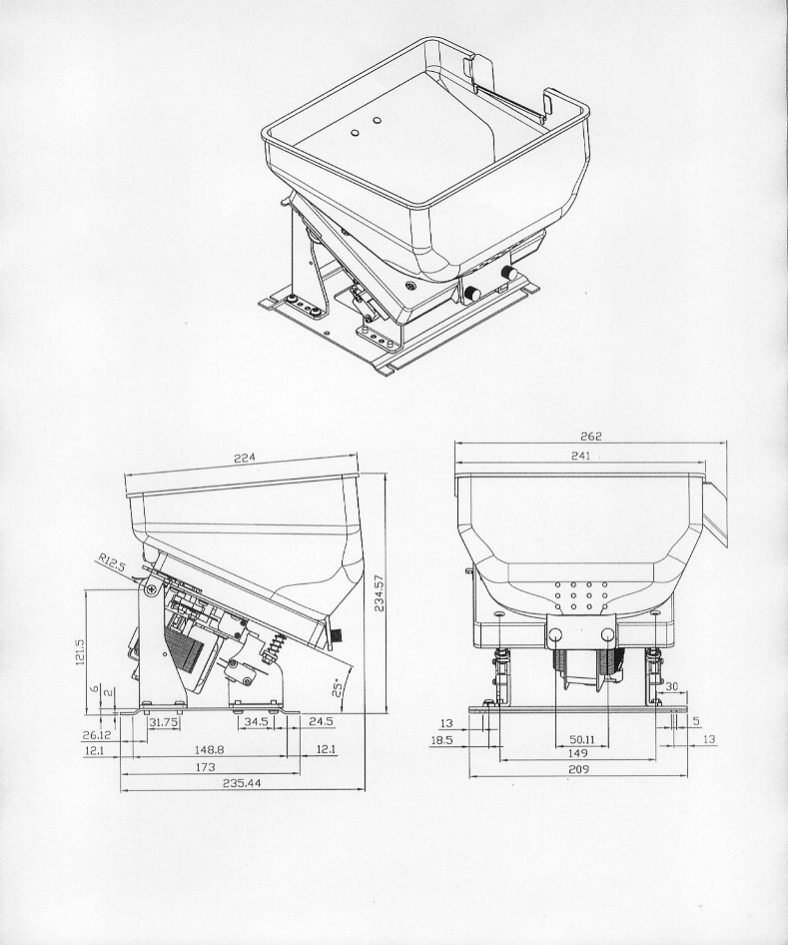

Model No.: HI-800 TYPE

SENSOR DIAGRAM

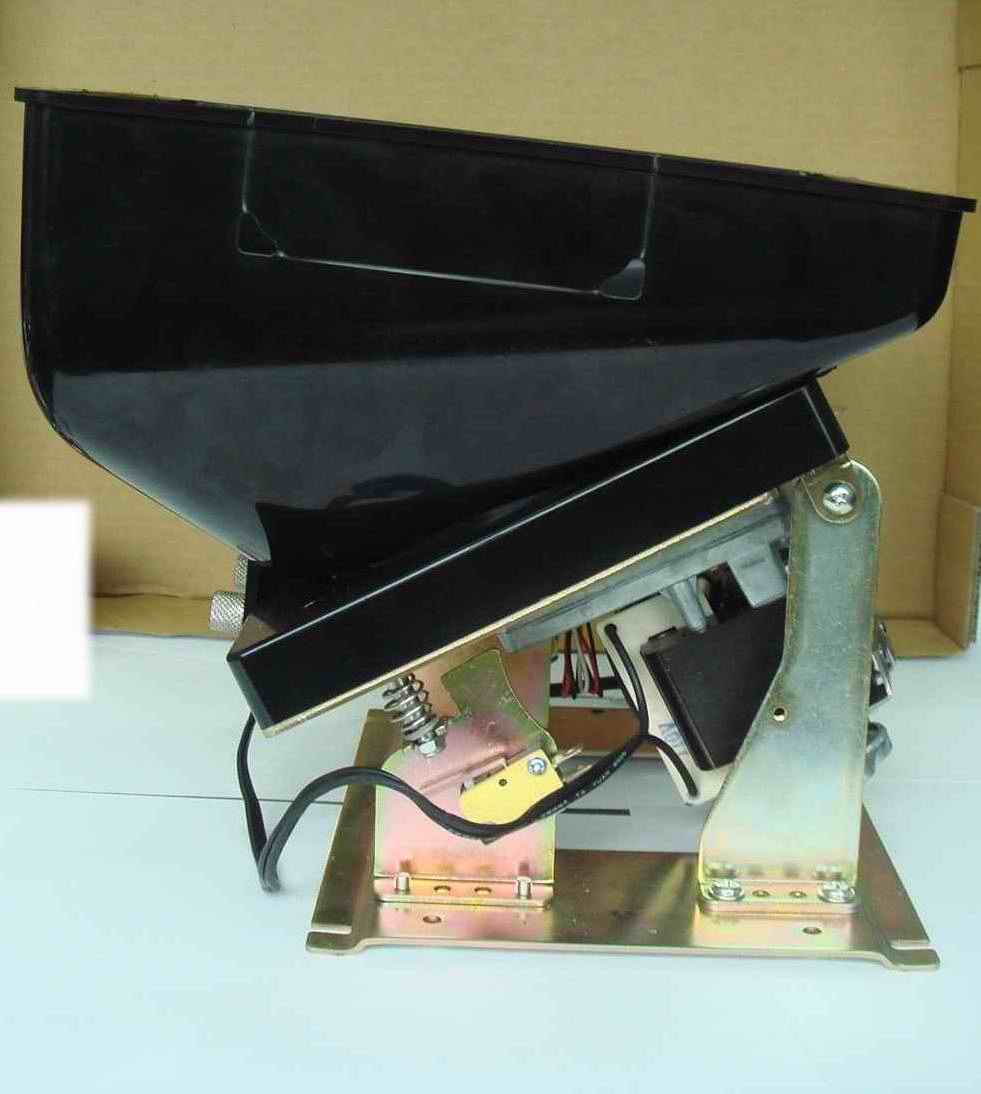

                                 PICTURE 1

ADJUSTMENT STEPS OF COIN SIZE AND COIN BOUNCING DISTANCE

STEP 1：ADJUST FOR THE COIN SIZE (DIAMETER BETWEEN 23~26㎜), ENABLE THE COIN TO PUSH THE BEARING TO LET THE SENSOR SENSE AND COUNT.［REFER TO PICTURE 1］

1、          FIRST, PUSH THE METAL SHEET 1 DOWNWARD，AND LET THE FIXED PIECE 2 GO UNDER。

2、          ADJUST、MOVE ADJUSTING-PROTRUDENT-PIECE(LUMP)3，LET COIN ADJUSTING HOLE 4 CAN MOVE UP or DOWN and ACCORDING TO COIN (5) DIAMETER SIZE TO SET ADJUSTMENT， AFTER THE COIN ADJUSTING HOLE 4 IS ADJUSTED ， LET THE FIXED PIECE 2 BACK TO ITS POSITION， ENABLE THE COIN 5 TO PRESS BEARING 6 WHEN COIN 5 BOUNCING OUT， LET BEARING 6 MOVE BACK and FORTH INSIDE THE SLIDE TO STIMULATE THE SENSOR TO COUNT。
