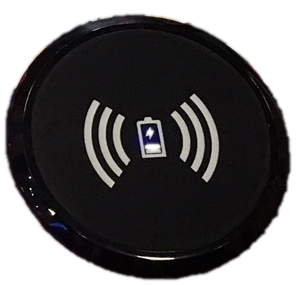

QI WIRELESS CHARGER

QI WIRELESS CHARGER
Product Name : QI WIRELESS CHARGER
Product No : HS-88-QI-5W-B
Product Description

MODEL No.: HS-88-QI-5W-B

Inquiry
Product Introduction

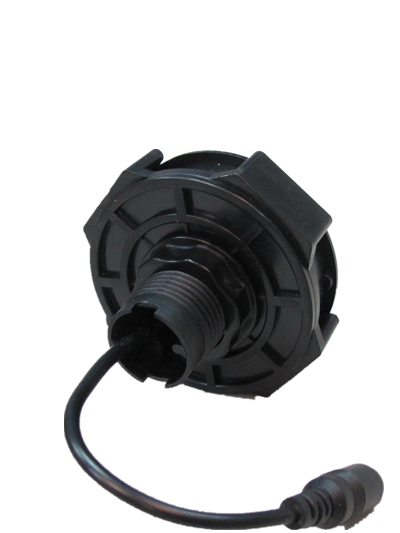

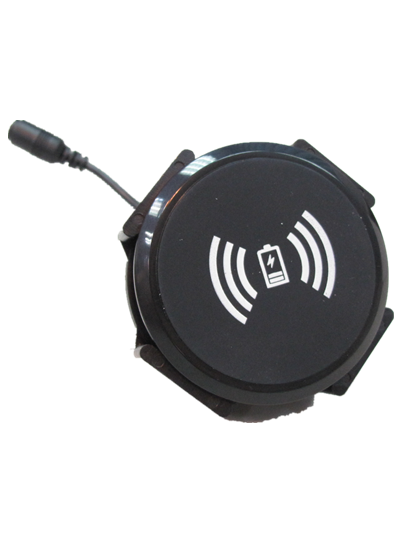

proimages/12-OTHER-SPARE-PARTS/HS-88-QI-5W-B/1.pngproimages/12-OTHER-SPARE-PARTS/HS-88-QI-5W-B/2.png

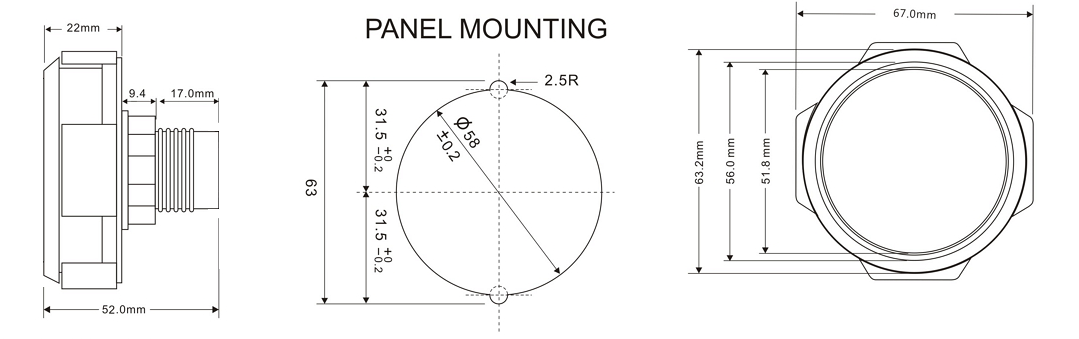

proimages/12-OTHER-SPARE-PARTS/HS-88-QI-5W-B/3.png

1.      Input: DC5V

2.      Voltage Input: DC022B DC-JACK (Internal positive+ and external negative-)

3.      Output: 5V±0.25V

4.      Charging Current: 800mA-1000mA

5.      Output Power: Max 5W

6.      Conversion Efficiency: ≥67%

7.      Transmission Distance: Max 8mm, Recommend 2mm~4mm

8.      Power Saving Consumption: Avg. lower than 50mW

9.      Working Frequency: 110～205KHz

10.  Overcurrent Protection: The charging will automatically stop if output current over 1.8A

11.  Foreign Object Detection(FOD) supported



12.  LED Indicator: Red is charging, Blue is ready to charge; System failure: Red light keep flashing

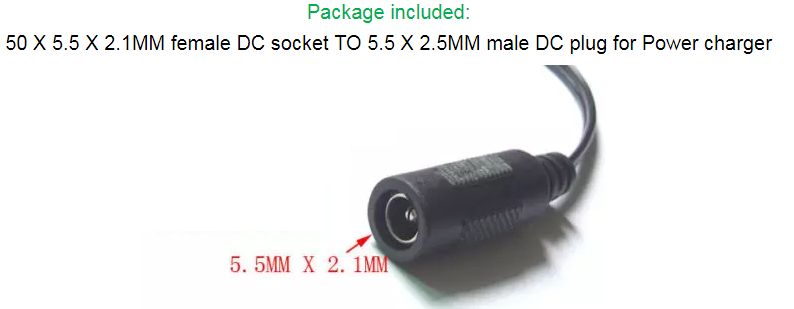

proimages/12-OTHER-SPARE-PARTS/HS-88-QI-5W-B/4.png
